Default Push Blocks & Push Sticks

Hello All!
Safety is #1...Especially with fast moving, sharp objects that your hands get close to...

The Web is full of articles, plans, and photos of push sticks and push bars. From $0 to upwards of $100.

The plastic push stick that came with my Kobalt table saw is a good start, although you can't clamp to the fence if you take it out to use it - go figure...

I've seen You Tube vids, with people using 1 push stick, 2 push sticks, a push stick and a push block, singly or in pairs.

Push sticks made like hand saws,

push sticks made like wimmen,

Swans,

Rams,

Fish,

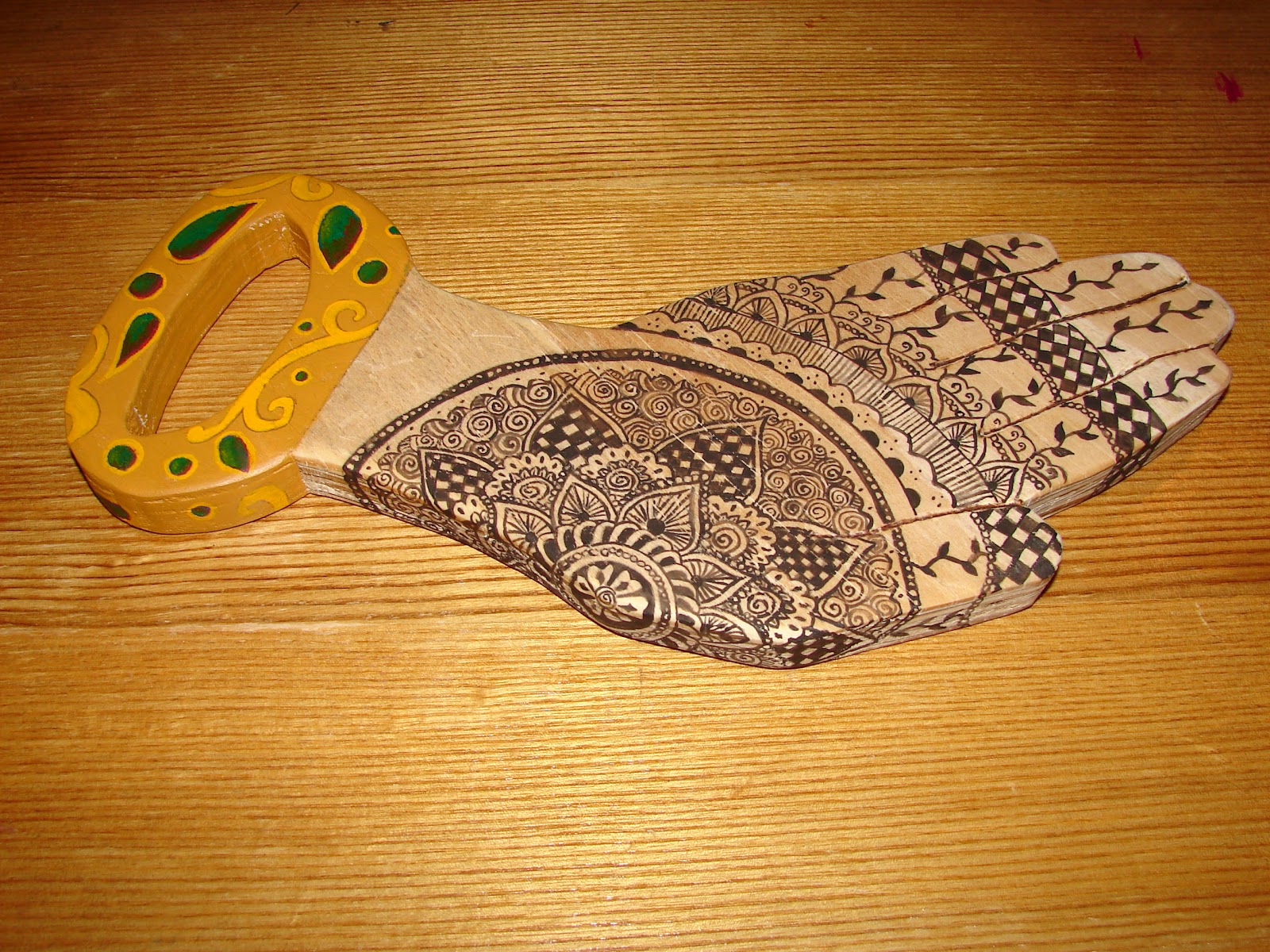

and fingers.


Push sticks made in 'L' shapes,

and lazy-l shapes,

with curved,

straight,

and non-existent handles.

Pushsticks with rubber shelf lining on the bottom.

And tapered rubber washers.


Push blocks made from 4x4 with a drawer handle on the top,

Vertical stock push blocks,

push blocks that fit over the fence,


and push blocks/sticks that fit over saw blades,

and push blocks with two handles.


They are labeled "the best pushstick,"

"the best pushstick ever,"

and even "the ultimate pushstick."


And that is JUST the DIY push sticks and blocks...
Getting into all the commercial products for sale just makes my head (and wallet) hurt...

Now, I understand that some of it is hype, some of it is "what to do with scrap wood," and some of it is personalizing your hand made push stick.
But with safety SUCH an important concern with Power Tools, and being totally clueless, highly intimidated, and unable to get the cats to do the dangerous work for me, I am asking you kind, experienced, and knowledgeable folk to help me make a semi-informed choice on what kind of pushing device do I need, and what is/are the better choices?

I don't really want to have a push stick/push block collection...
Thanks for your input!
~M
swarfmaker, MYB, ksidwy and 3 others like this.

Last edited by Moz; 12-03-2015 at 11:02 PM. Reason: Hit the publish button before I was done...
Moz is offline
Sponsored Links
Advertisement

post #2 of 107 (permalink) Old 12-04-2015, 12:29 AM
Registered User

vindaloo's Avatar

Join Date: May 2009
Country: United Kingdom
First Name: Angie
Posts: 1,651

Default

If a push stick keep your digits away from the blade and the piece being machine secure, then it's a good push stick.

Then it comes down to what you are comfortable with, what is comfortable in your hand.

Then, if you have scrap wood that'll be good enough to make it with, then that'll do nicely.
JFPNCM, swarfmaker, Nickp and 1 others like this.

When everything around you is going to pot, get out in the workshop.
vindaloo is offline
post #3 of 107 (permalink) Old 12-04-2015, 01:48 AM
Registered User

sunnybob's Avatar

Join Date: Apr 2015
Country: Cyprus
First Name: Bob
Posts: 1,788

Default

picture 1.

KISS (Keep It Simple, Stupid) because its heartbreaking to put all that work into something thats gonna get chewed up on a regular basis.
9mm ply, make a template, cut a half dozen at a time. Sorted.
DaninVan likes this.
sunnybob is offline
Sponsored Links
Advertisement

post #4 of 107 (permalink) Old 12-04-2015, 01:56 AM
Moderation Team

Cherryville Chuck's Avatar

Join Date: Sep 2010
Country: Canada
First Name: Charles
Posts: 14,856

Default

If you have to rip narrow pieces then you are going to chew up your push stick in somewhat short order so it is best to have it home made and to consider it expendable. My personal choice is the lazy I type made out of 1/4" ply. Quick and easy to make and cheap. I do like the idea of the 4x4 block with replaceable end to it though. I might have to give that one a try. I have a plastic one I bought for a few dollars that is about 3/4" wide so I use it for cuts between 1" and where I feel comfortable putting my hand between the blade and the fence. The main thing is to have them and use them. You can replace push sticks. You can't replace fingers.
Nickp and Moz like this.

Someone I consider a master woodworker once told me that a master woodworker is not someone who never makes mistakes. He is someone who is able to cover them up so that no one can tell.
Cherryville Chuck is online now
post #5 of 107 (permalink) Old 12-04-2015, 02:50 AM
Forum Contributor

Stick486's Avatar

Join Date: Jan 2013
Country: United States
First Name: Stick
Posts: 24,506

Default

thanks again @Moz ...
swarfmaker likes this.

This would have been the week that I'd have finished chewing thru the restraints...
If only new layers hadn't been added....

Stick....
Forget the primal scream, just ROAR!!!
"SNORK Mountain Congressional Library and Taxidermy”
Stick486 is online now
post #6 of 107 (permalink) Old 12-04-2015, 02:55 AM
Forum Contributor

Stick486's Avatar

Join Date: Jan 2013
Country: United States
First Name: Stick
Posts: 24,506

Default

Quote:
Originally Posted by sunnybob View Post
picture 1.

KISS (Keep It Simple, Stupid) because its heartbreaking to put all that work into something that's gonna get chewed up on a regular basis.
9mm ply, make a template, cut a half dozen at a time. Sorted.
don't forget MISS.. (Make It Super Simple)...

This would have been the week that I'd have finished chewing thru the restraints...
If only new layers hadn't been added....

Stick....
Forget the primal scream, just ROAR!!!
"SNORK Mountain Congressional Library and Taxidermy”
Stick486 is online now
post #7 of 107 (permalink) Old 12-04-2015, 05:33 AM
Registered User

vchiarelli's Avatar

Join Date: Mar 2012
Country: Canada
First Name: Vince
Posts: 3,456

Default

The problem with a lot of "push" sticks is that they only push. You want downward pressure on the wood to prevent it from riding up on the blade and causing kick back. And you want to keep your hands away from the blade as well.

I have the GRR-RIPPER model GR-200 and wouldn't be without it. A little expensive, but worth the money from a safety aspect. With some extra attachments you can rip pieces as narrow as 1/8 inch.

GRR-RIPPER® - MICROJIG - Work Smarter
Attached Images

TWheels, JFPNCM, boogalee and 2 others like this.
vchiarelli is offline
post #8 of 107 (permalink) Old 12-04-2015, 05:40 AM
Forum Contributor

Stick486's Avatar

Join Date: Jan 2013
Country: United States
First Name: Stick
Posts: 24,506

Default

Quote:
Originally Posted by vchiarelli View Post
The problem with a lot of "push" sticks is that they only push. You want downward pressure on the wood to prevent it from riding up on the blade and causing kick back. And you want to keep your hands away from the blade as well.

I have the GRR-RIPPER model GR-200 and wouldn't be without it. A little expensive, but worth the money from a safety aspect. With some extra attachments you can rip pieces as narrow as 1/8 inch.

GRR-RIPPER® - MICROJIG - Work Smarter
is cheating allowed???

.
Attached Files
File Type: pdf Grip-N-Rip.pdf (1,022.0 KB, 499 views)
File Type: zip Grip-N-Rip - Sketch-Up.zip (192.1 KB, 172 views)
JFPNCM, vchiarelli, ksidwy and 1 others like this.

This would have been the week that I'd have finished chewing thru the restraints...
If only new layers hadn't been added....

Stick....
Forget the primal scream, just ROAR!!!
"SNORK Mountain Congressional Library and Taxidermy”
Stick486 is online now
post #9 of 107 (permalink) Old 12-04-2015, 05:42 AM Thread Starter
Moz
Registered User

Moz's Avatar

Join Date: Nov 2015
Country: United States
First Name: Moz
Posts: 284

Send a message via Yahoo to Moz
Default

Stick, I may have to adopt you...

~M
Moz is offline
post #10 of 107 (permalink) Old 12-04-2015, 05:44 AM
Registered User

vchiarelli's Avatar

Join Date: Mar 2012
Country: Canada
First Name: Vince
Posts: 3,456

Default

Quote:
Originally Posted by Stick486 View Post
is cheating allowed???

.
That's not cheating, that's adapting
ksidwy and gjackson52 like this.
vchiarelli is offline
