Default Finished my table...

Well I finally finished my router table (other than some tweaking with shims etc) and I have already made something with it!

I kept getting all these router bits and I had no place to put them so I made myself a router bit box. I bought some cheap pine and decided to try out some locking joints... the joints worked so well that I did not have to use glue to keep the box together so I decided to not use glue at all to see how solid the joinery is by it's self.

Well here are some pictures of the table:

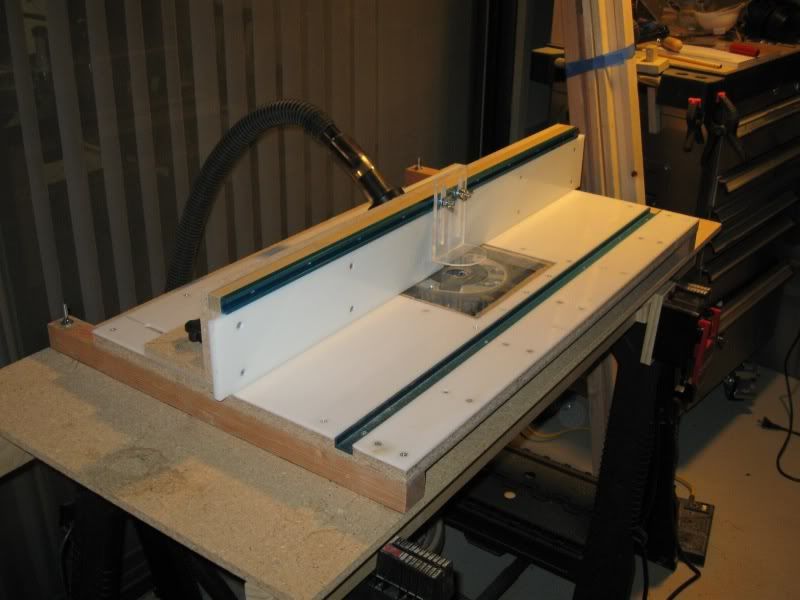

This is a overall view of the router table.

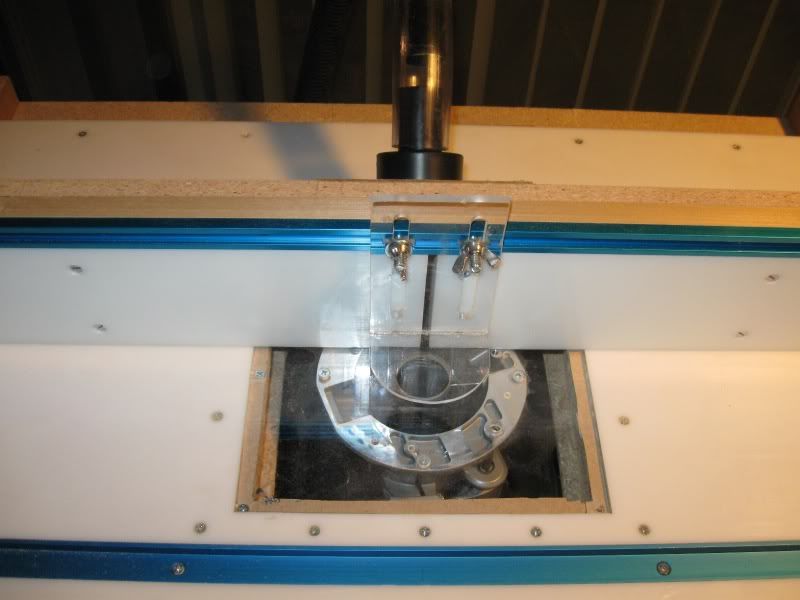

Here is a close up of the fence center point and the mounting plate for the router.

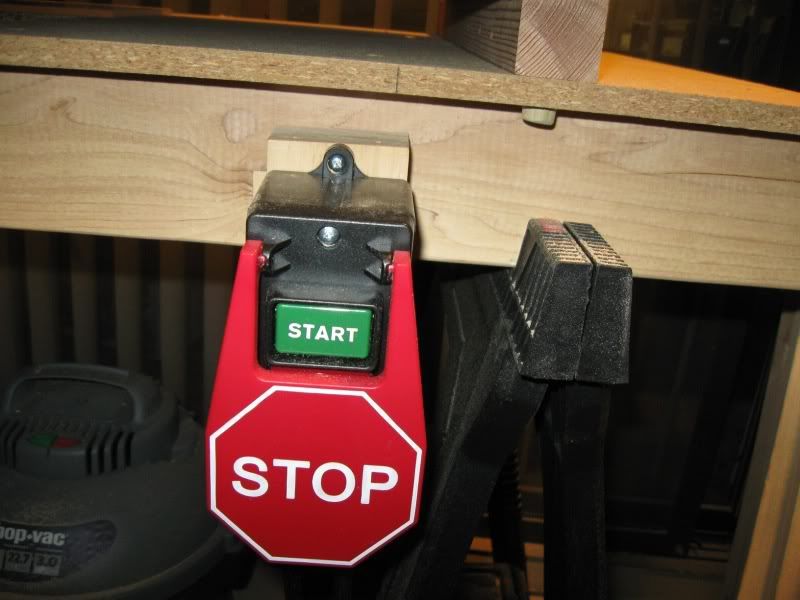

Close up of the safety switch that I got from Rockler... it is solid and it works really well - I hook my router and my vacuum up to it at the same time and it works well as far as I can tell. Notice the dowel to the right of it under the table surface... that goes through the table to keep the front end in place.

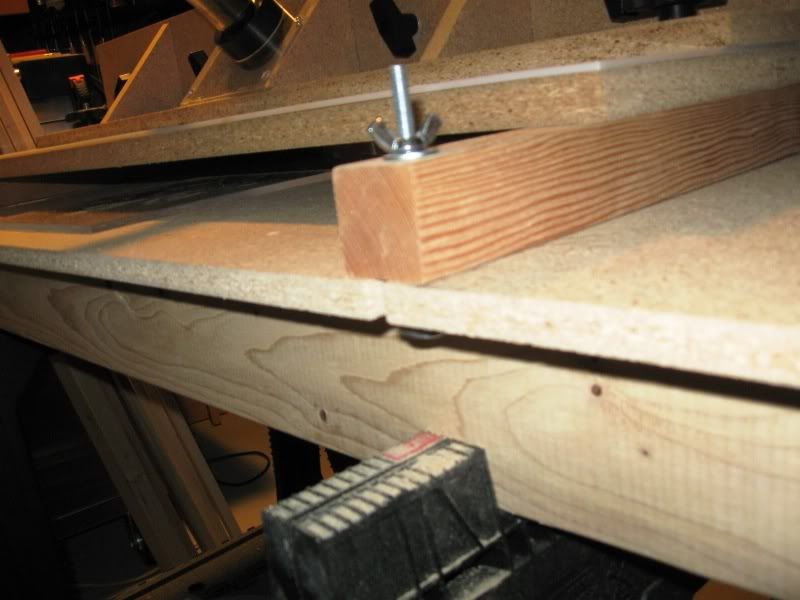

Here is the back end of the table, I cut some grooves for the bolts that are shown to slide into, the pegs in the front keep the front from moving while the bolts hold the whole thing steady... works well so far.

The whole router table part of this setup is removable, the hole that is left in the center of the workbench (that is under the router table) is covered up by a countersunk piece of 1/4" acrylic.

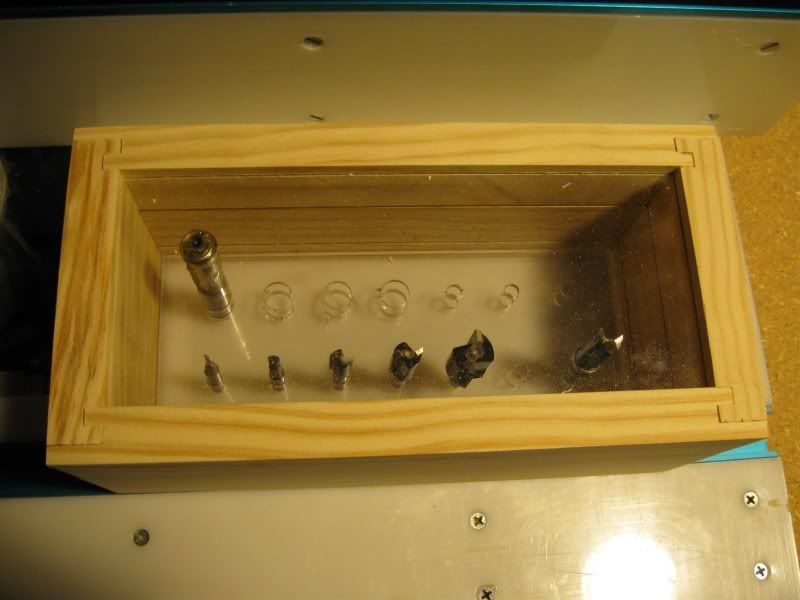

Here are a couple picture of the router bit box, I used acrylic for the lid and all the other pieces. I put in a middle plate and a bottom plate and drilled holes for the bits to fit in, the bottom plate has a section of 1/4" acrylic glued on top with holes in it so that there is a stop on bottom so that the bits don't slip through.

Well if you have any questions feel free to ask... I may have missed something due to me being tired so forgive any obvious mistakes lol.

-Arthur
IceBullit is offline
Sponsored Links
Advertisement

post #2 of 8 (permalink) Old 05-13-2009, 04:12 PM
Community Founder

Mark's Avatar

Join Date: Aug 2004
Country: Canada
First Name: Mark
Posts: 6,764

Default

Really nice setup, thanks for sharing.

Mark,
Founder of RouterForums.com
Mark is offline
post #3 of 8 (permalink) Old 05-13-2009, 05:25 PM
Registered User

Noob's Avatar

Join Date: Apr 2009
Country: United States
First Name: Paulo
Posts: 550

Default

That should work very well. Is that a UHMW fence?
Noob is offline
Sponsored Links
Advertisement

post #4 of 8 (permalink) Old 05-13-2009, 05:52 PM
Retired Moderator

Bob N's Avatar

Join Date: Oct 2004
Country: United States
First Name: Bob
Posts: 5,688

Default

Looks Great Arthur! I can tell you put a lot of thought and hard work into it.

Last edited by Bob N; 05-13-2009 at 05:56 PM.
Bob N is offline
post #5 of 8 (permalink) Old 05-13-2009, 10:37 PM
Forum Contributor

AxlMyk's Avatar

Join Date: Jun 2006
Country: United States
First Name: Mike
Posts: 3,165

Default

Good job.
Let's see now. You'll need a bigger box for when you get more bits. Go ahead, glue it together.

.
Never, under any circumstances, combine a sleeping pill and a laxative on the same night.

Mike - Retired FoMoCo Tradesman
My Gallery @ http://www.routerforums.com/axlmyks-stuff/
AxlMyk is offline
post #6 of 8 (permalink) Old 05-14-2009, 01:59 AM
Forum Contributor

xplorx4's Avatar

Join Date: Dec 2008
Country: United States
First Name: Jerry
Posts: 10,671

Default

Looks good, something satisfying about making your own stuff. It is personalized to what you need and want plus it is just plain satisfying. So now you have it what is the next project? Keep posting we would like to follow your progress.

Wisdom: Where experience and knowledge combine and become one.

"We are all one decision away from Stupid!!"

Lamentations 3:22-23

"How often we sacrifice the permanent plans of God on the altar of immediate solutions"

I have a very good memory, just short is all.
xplorx4 is offline
post #7 of 8 (permalink) Old 05-14-2009, 08:51 PM Thread Starter

Join Date: Mar 2009
Posts: 9

Default

My next big project is going to be a magazine rack for my bathroom... I am waiting on some bits I ordered from Eagle America before I start on that (they should be here tomarrow).
IceBullit is offline
post #8 of 8 (permalink) Old 05-14-2009, 08:54 PM Thread Starter

Join Date: Mar 2009
Posts: 9

Default

Quote:
Originally Posted by Noob View Post
That should work very well. Is that a UHMW fence?
I am using 3/8" HDPE for my fence (cutting board material) and it is working well for me so far... I got it at TAP plastics.
