Building a New Router Table-What's the Ideal Working Height?

29536 Views 12 Replies 9 Participants Last post by RainMan 2.0, Jul 20, 2014

gerrym526

Discussion Starter · Oct 27, 2004

Just built two new router table tops with accompanying fences - one to fit my PC 690 base (mounted without an insert plate directly to the bottom of the table), and one to fit my PC 3hp Speedmatic, using a cast aluminum insert plate (from Rockler).
Having decided to replace my old router table frame and legs with an enclosed cabinet on casters (for router and bits storage), I'm faced with a decision on the proper working height.
My old table frame, with top, was 37" high, and proved to be a very comfortable working height. However, I'm now hoping to use the new router table cabinet with top as an outfeed table for my saw, which is 34" high.
I"ve seen Bob and Rick's table, and it seems to be fairly high, to provide a comfortable working height.
Will I find a 34" working height to be too low? Hard to control pieces past the bits? (especially using cabinet rail/stile bits)?
If my working height needs to be greater than 34" I can design the cabinet to serve as an outfeed table at that height, and provide a riser type frame that the router table tops can be mounted to, when the cabinet is used as a router table.

Looking for your input and suggestions guys. Thanks in advance.
Gerry

Save

Reactions: 1

1 - 13 of 13 Posts

BobandRick

· #2 · Oct 27, 2004

Our tables are 41" high. The best height is 5 to 7" off end of your bent elbow to the table top.

Save

reible

· #3 · Oct 31, 2004

Out of a hand book I have wookbenches are at 36 and router tables at 40"-41". Please also look at:
www.routerforums.com/showthread.php?t=210
for some other discussion on table heights and if you want do a search on "heights" to see a few other comments within the forums.

Ed

Save

Dewy

· #4 · Oct 31, 2004

Bob and Rick, is that 5-7" above or below the elbow?
I've never noticed any problems with my table but just measures my elbow and it's 40" off the ground.
My table is 34" which makes it 6" below the elbow so if it should be below then mine is at a perfect height.

Save

Mike

· #5 · Nov 24, 2004

Gerry, do you really want to move your router set up every time you need to use your table as an outfeed platform? Since you have designed two tops to fit this stand would it be more practical to design additional tops for sanding, maybe mounting other power tools and then building a rack to hold the different tops? (ala Tool Dock) Just some thoughts. Good luck with it.

Save

gerrym526

Discussion Starter · #6 · Nov 24, 2004

Thanks for the ideas. At this point I've decided to build a cabinet for routers and bit storage, which will also accomodate the two separate tops. It won't be used as an outfeed table, because after thinking about it, I"m comfortable with a 40-41" working height suggested by our "experts" (thanks guys).

Save

Stu in Tokyo Japan

· #7 · Feb 19, 2005

My router table will be docked next to my SCMS, so the two have to be the same height, as is my bandsaw (a large re-saw unit, so it is lower to the ground than most band saws usually are).

If the router table is on it's own, the

5 to 7" off end of your bent elbow to the table top

is great, it takes into consideration how tall you are and how long or short your arms are.

Cheers!

Save

timbertailor

· #8 · Jul 18, 2014

I will make this easier for everyone.

I recommend belly button height for a router table.

Disclaimer: You must deduct for "outies".

Save

RainMan 2.0

· #9 · Jul 18, 2014 (Edited)

Gerry I have the exact same problem and I was going to build a router table that has adjustable height as I need just under 34" to make it work as an out feed table , but I think that's going to feel uncomfortable for routing .
But now I'm debating to build a 36" dual router table and instead build an adjustable height work bench / out feed table/ assembly table . It's sure going to get crowded in my garage though

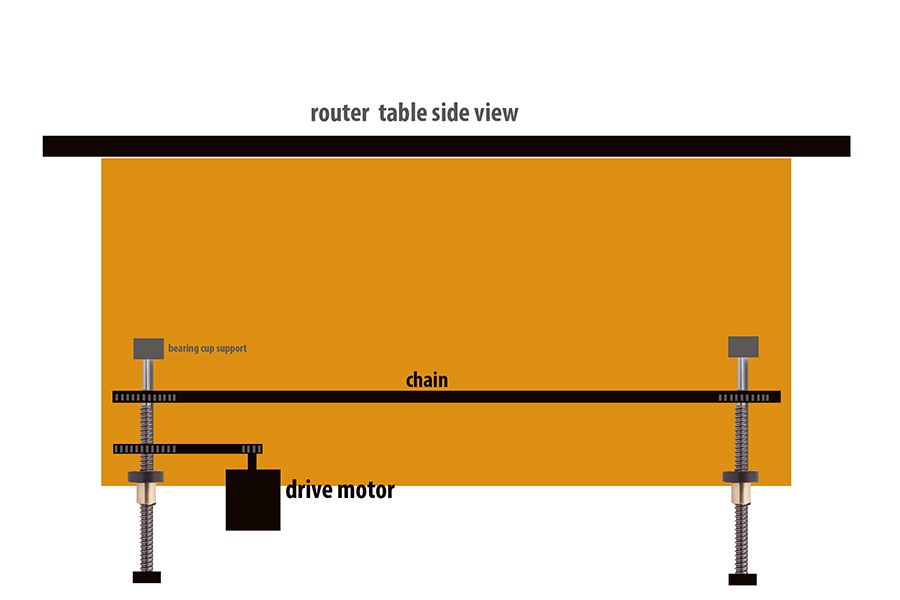

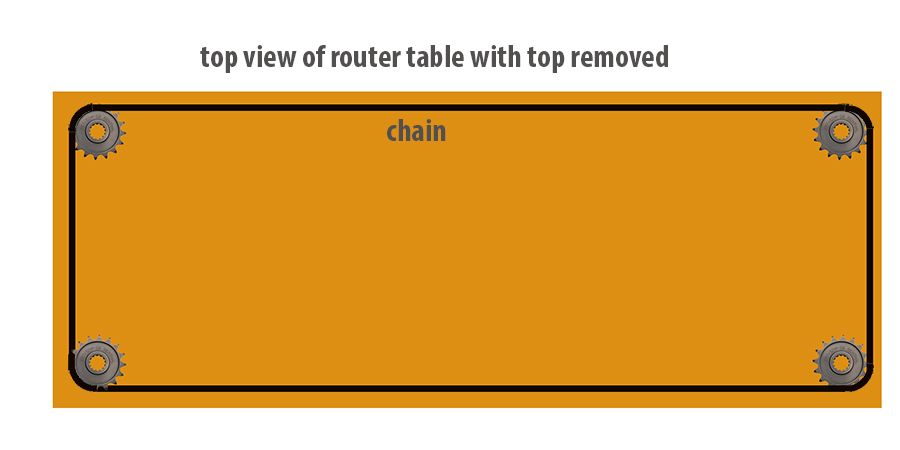

This is example of an idea . I was going to kibosh the motor and use a cordless drill to change the height instead . I have bought 1" threaded rod and the sprockets already . Would have preferred acme linear rods though but there very expensive and tough to order here

See less See more

Save

JOAT

· #10 · Jul 18, 2014

Did you guys notice the date of the original post? You take two guys, same height, and their router tables are apt to be at different heights. It's what is comfortable for you to use, bottom line.

Save

RainMan 2.0

· #11 · Jul 18, 2014

JOAT said:
Did you guys notice the date of the original post? .

[email protected] :laugh:

Save

timbertailor

· #12 · Jul 19, 2014

RainMan1 said:
[email protected] :laugh:

I saw the date. I had ran across a similar discussion on another forum and decided to provide my "scientific" approach to router table design.

Save

RainMan 2.0

· #13 · Jul 20, 2014

timbertailor said:
I saw the date. I had ran across a similar discussion on another forum and decided to provide my "scientific" approach to router table design.

Good call Brad . And your input is always appreciated

Save
